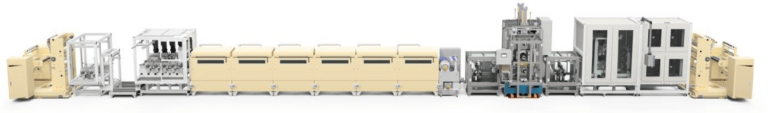

Machine type: | Roll-to-Roll coating |
Substrate types to be processed: | Various types (e.g., polymer films, cellulose based films, etc.) |
Substrate dimension: | Maximum 550 mm working width, continuous roll |
Technologies available: | Slot die coating, knife coating, screen printing, gravure printing, flexographic printing, 5 roller coating, corona treatment, Calendaring, Inertcalendaring, inert lamination, thermal NIL, floatation dryers, radiation dryers (UV, IR) |
Deposition materials available: | Wide range of different materials |
Typical applications: | Sustainable packaging, Nanocellulose barrier coating, fuel cells, membrane printing, printed electronics, pharmaceutical products |
